CÔNG TY TNHH THƯƠNG MẠI DỊCH VỤ KỸ THUẬT CÔNG NGHỆ BGTDANH MỤC SẢN PHẨM

Sản Phẩm Chi tiết

50%

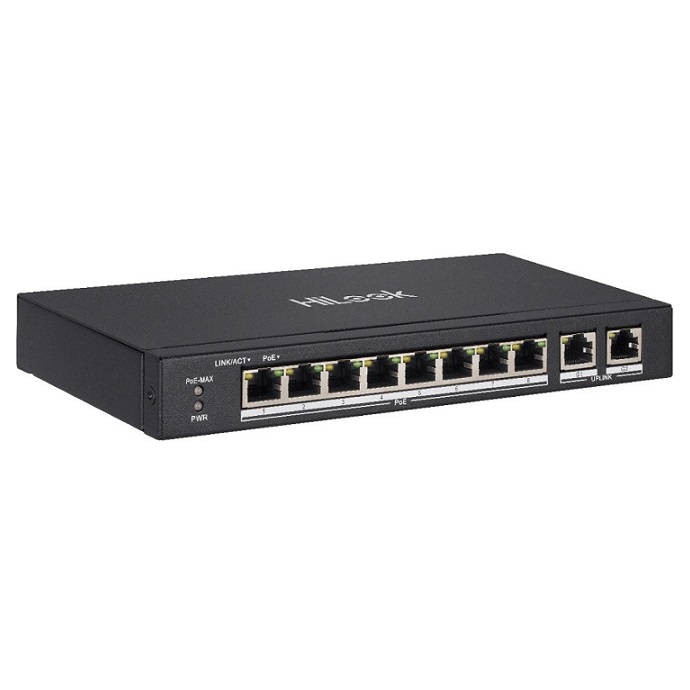

Switch PoE 8 cổng HILOOK NS-0310P-60
  • Switch PoE 8 cổng HILOOK NS-0310P-60

  • Mã SP : NS-0310P-60
  • - 8 × 10/100Mbps PoE ports - 2 × Gigabit RJ45 port - IEEE 802.3at/af standard for PoE ports - Công suất Max. 60 W PoE output - 6 KV surge protection for PoE ports. - Bảo hành 12 tháng chính hãng. - Giá chưa bao gồm VAT.
  • Lượt xem : 567
  • Giá cũ : 2.050.000 VNĐ
  • Giá bán : 1.025.000 VNĐ
  • Số lượng :
    Đặt hàng ngay
  • Thông tin sản phẩm

Switch PoE 8 cổng HILOOK NS-0310P-60
- 8 × 10/100Mbps PoE ports, and 2 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 250 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching
- Solid high-strength metal shell.
- Reliable fan-free design.

Thông số kỹ thuật

Model NS-0310P-60
Network parameters
Port number 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode
Ports for long-distance transmission Ports 1 to 8
MAC address table 16K
Switching capacity 5.6 Gbps
Packet forwarding rate 4.1664 Mpps
Internal cache 4 Mbits
PoE power supply
PoE standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port Ports 1 to 8
Max. port power Ports 1 to 8: 30W
PoE power budget 60W
Dialing function
Long range Ports 1 to 8: up to 250 m
General
Shell Metal material, fan-free design
Net weight 0.555 kg
Dimension (L × H × D) 217.6 × 103.35 × 27.8 mm
Operating temperature -10°C to 40°C
Storage temperature -40°C to 85°C
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption in idle <5W
Max. power consumption 65W
Power source 65W
