Switch PoE 6 cổng HILOOK NS-0106P-35

Sản Phẩm Chi tiết

Trang Chủ Sản Phẩm THIẾT BỊ MẠNG - WIFI - NAS Thiết bị mạng HILOOK Switch PoE 6 cổng HILOOK NS-0106P-35

50%

Switch PoE 6 cổng HILOOK NS-0106P-35
Mã SP : NS-0106P-35
- 4 x 10/100Mbps PoE ports - 2 × 10/100Mbps RJ45 ports - Công suất Max. 35 W PoE output - 6 KV surge protection for PoE ports. - Bảo hành 12 tháng chính hãng. - Giá chưa bao gồm VAT.
Lượt xem : 566
Giá cũ : 1.110.000 VNĐ
Giá bán : 555.000 VNĐ
Số lượng :
Đặt hàng ngay

Thông tin sản phẩm

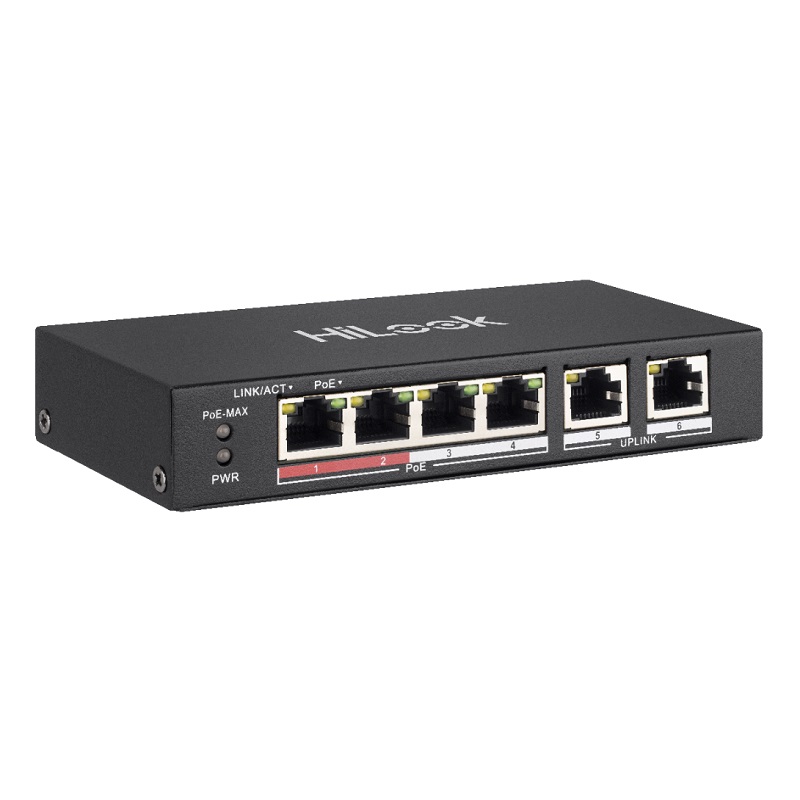

Switch PoE 6 cổng HILOOK NS-0106P-35
- 4 x 10/100Mbps PoE ports, and 2 × 10/100Mbps RJ45 ports
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 250 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design

Thông số kỹ thuật

Model	NS-0106P-35
Network parameters
Port number	4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default), Extend mode
High priority ports	Ports 1 and 2
Ports for long-distancectransmission	Ports 1 to 4
MAC address table	4K
Switching capacity	1.6 Gbps
Packet forwarding rate	0.8928 Mpps
Internal cache	768 Kbits
PoE power supply
PoE standard	Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE port	Ports 1 to 4
Max. port power	Ports 1 to 4: 30 W
PoE power budget	35 W
Dialing function
Long range	Ports 1 to 4: up to 250 m
General
Shell	Metal material, fan-free design
Net weight	0.265 kg
Dimension (L × H × D)	145 × 68.45 × 25.6 mm
Operating temperature	-10°C to 40°C
Storage temperature	-40°C to 85°C
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 VDC, 0.8 A
Power consumption in idle	<5W
Max. power consumption	38W
Power source	38W
