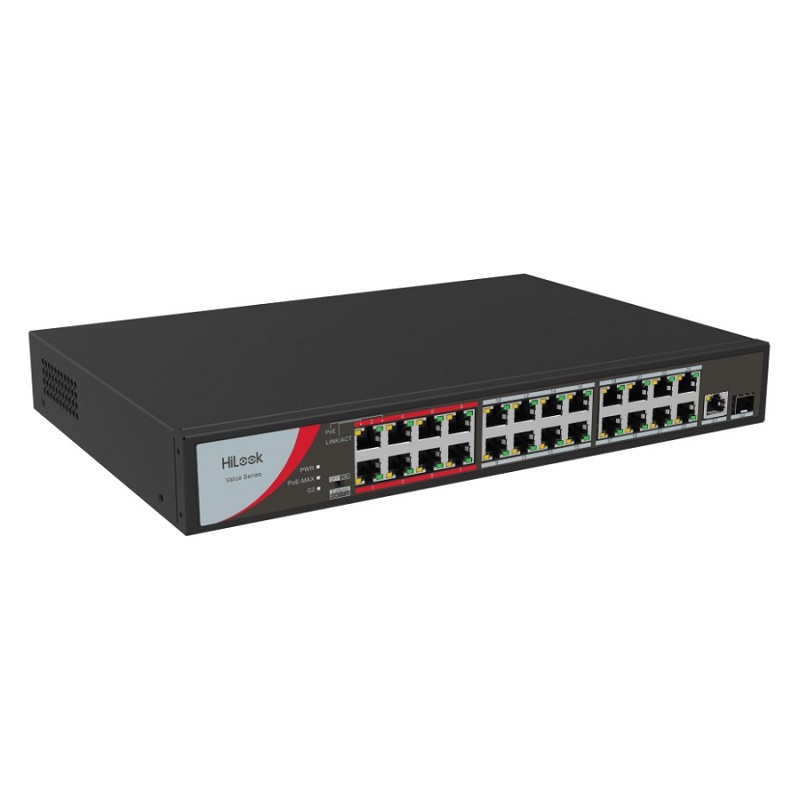

Switch PoE 24 cổng HILOOK NS-0326P-230(B)

Sản Phẩm Chi tiết

Trang Chủ Sản Phẩm THIẾT BỊ MẠNG - WIFI - NAS Thiết bị mạng HILOOK Switch PoE 24 cổng HILOOK NS-0326P-230(B)

50%

Switch PoE 24 cổng HILOOK NS-0326P-230(B)
Mã SP : NS-0326P-230(B)
- 24 × 100Mbps PoE ports - 1 × 1000Mbps RJ45 port - 1 × 1000Mbps SFP fiber optical port - IEEE 802.3at/af standard - 6KV surge protection for PoE ports. - Bảo hành 12 tháng chính hãng. - Giá chưa bao gồm VAT.
Lượt xem : 511
Giá cũ : 6.730.000 VNĐ
Giá bán : 3.365.000 VNĐ
Số lượng :
Đặt hàng ngay

Thông tin sản phẩm

Switch PoE 24 cổng HILOOK NS-0326P-230(B)
- 24 × 100Mbps PoE ports, 1 × 1000Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- High priority ports.
- 8-core power supply.
- Up to 250m transmission distance.
- 6KV surge protection for PoE ports.
- PoE power management.
- 1000Mbps network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.

Thông số kỹ thuật

Model	NS-0326P-230 (B)
Network parameters
Port number	24 × 100Mbps PoE ports, 1 × 1000Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default); Extend mode
High priority ports	Ports 1 to 8
Ports for long-distance transmission	Ports 17 to 24
MAC address table	4K
Switching capacity	8.8Gbps
Packet forwarding rate	6.547Mpps
Internal cache	2.75Mbits
PoE power supply
PoE standard	IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
PoE power pin	Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port	Ports 1 to 24
Max. port power	30W
PoE power budget	230W
Max. power consumption	250W
General
Shell	Metal material
Gross weight	3.33 kg (7.34 lb)
Net weight	2.55 kg (5.6 lb)
Dimension (L × H × D)	335 mm × 44.5 mm × 226 mm
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle	20 W
