Switch PoE 16 cổng HILOOK NS-0318P-130(B)

Sản Phẩm Chi tiết

Trang Chủ Sản Phẩm THIẾT BỊ MẠNG - WIFI - NAS Thiết bị mạng HILOOK Switch PoE 16 cổng HILOOK NS-0318P-130(B)

50%

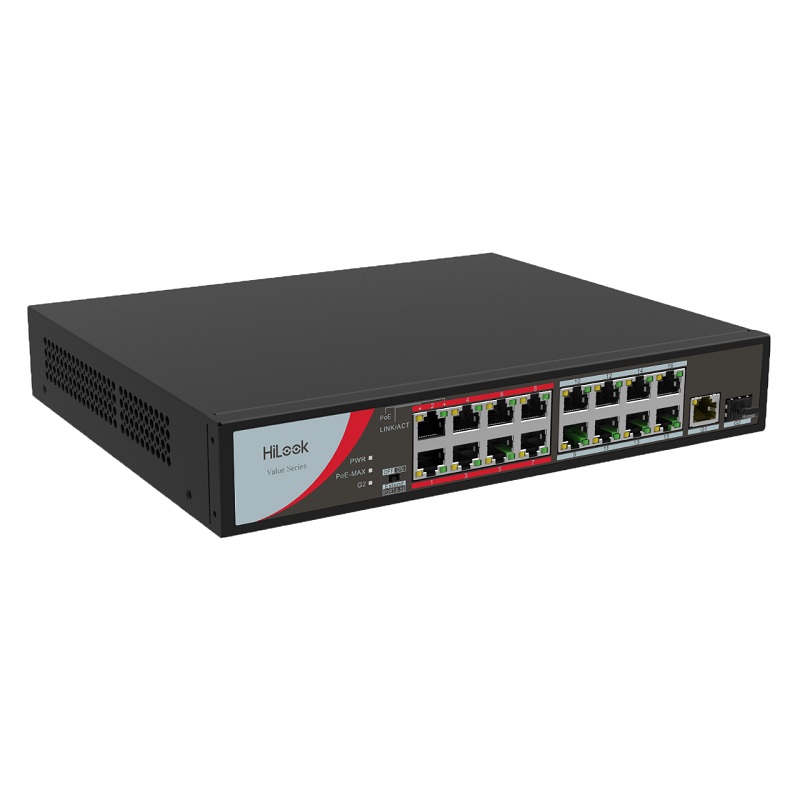

Switch PoE 16 cổng HILOOK NS-0318P-130(B)
Mã SP : NS-0318P-130(B)
- 16 × 100Mbps PoE ports - 1 × 1000Mbps RJ45 port - 1 × 1000Mbps SFP fiber optical port - IEEE 802.3at/af standard. - 6 KV surge protection for PoE ports. - Bảo hành 12 tháng chính hãng. - Giá chưa bao gồm VAT.
Lượt xem : 432
Giá cũ : 5.370.000 VNĐ
Giá bán : 2.685.000 VNĐ
Số lượng :
Đặt hàng ngay

Thông tin sản phẩm

Switch PoE 16 cổng HILOOK NS-0318P-130(B)
- 16 × 100Mbps PoE ports, 1 × 1000Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- High priority ports.
- 8-core power supply.
- Up to 250m transmission distance.
- 6 KV surge protection for PoE ports.
- PoE power management.
- 1000 Mbps network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.

Thông số kỹ thuật

Model	NS-0318P-130 (B)
Network parameters
Port number	16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000Mbps SFP fiber optical port
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default); Extend mode
High priority ports	Ports 1 to 8
Ports for long-distance transmission	Ports 9 to 16
MAC address table	4K
Switching capacity	7.2 Gbps
Packet forwarding rate	5.356 Mpps
Internal cache	2.75 Mbits
PoE power supply
PoE power pin	Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE power pin	Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply
PoE port	Ports 1 to 16
Max. port power	30W
PoE power budget	130W
Max. power consumption	150W
General
Shell	Metal material
Gross weight	2.58 kg (5.69 lb)
Net weight	1.8 kg (4.0 lb)
Dimension (L × H × D)	266 mm × 44.5 mm × 220.8 mm
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature	40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Power consumption in idle	20W
