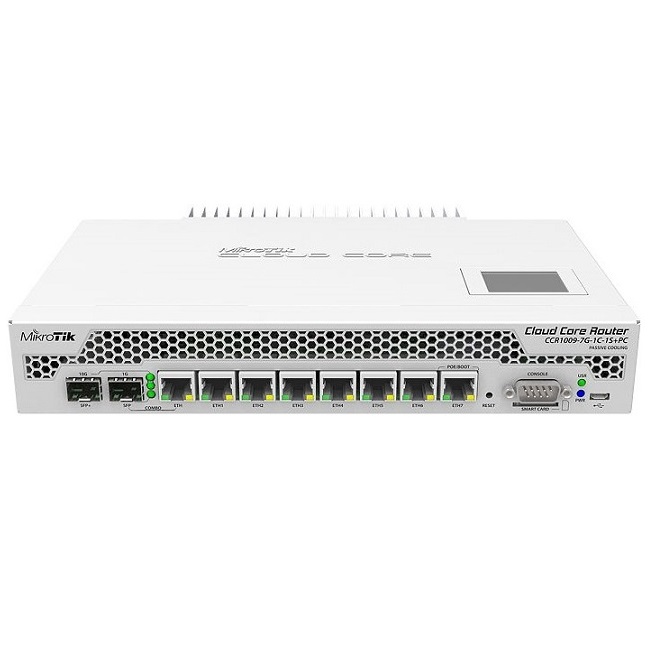

Router Mikrotik CCR1009-7G-1C-1S+PC
- Mã SP : CCR1009-7G-1C-1S+PC
- - 7 x Gigabit Ethernet ports - 1 x Combo port (SFP or Gigabit Ethernet) - 1 x SFP+ cage, 9 cores x 1GHz CPU - 2GB RAM, LCD panel, passive cooling desktop enclosure - SmartCard slot, RouterOS L6, PSU - Bảo hành 12 tháng chính hãng - Giá chưa bao gồm VAT
- Lượt xem : 794
- Giá cũ : 21.600.000 VNĐ
- Giá bán : 12.960.000 VNĐ
- Số lượng : Đặt hàng ngay
- Thông tin sản phẩm
Router Mikrotik CCR1009-7G-1C-1S+PC
- No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
- Combo-port - a single 1Gbit software interface that has two hardware interfaces - a SFP cage and a Gigabit.
- Ethernet port, allowing you to use any type of connection available to you. Port also allows to switch from one to another interface from software, or in event of disconnect, providing new, unique hardware fail-over feature.
- 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
- More throughput - due to how ports are connected to CPU, new CCR1009 models can achieve higher theoretical throughput.
- The CCR1009-7G-1C-1S+PC additionally includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.
Thông số kỹ thuật
Product code | CCR1009-7G-1C-1S+PC |
Architecture | TILE |
CPU | TLR4-00980 |
CPU core count | 9 |
CPU nominal frequency | 1 GHz |
Dimensions | 272 x 190 x 44 mm |
RouterOS license | 6 |
Operating System | RouterOS |
Size of RAM | 2 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
IPsec hardware acceleration | Yes |
Suggested price | $495.00 |
Powering
|
|
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 18-57 V |
Max power consumption | 38 W |
Max power consumption without attachments | 33 W |
FAN count | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 18-57 V |
Ethernet
|
|
10/100/1000 Ethernet ports | 7 |
Ethernet Combo ports | 1 |
Fiber
|
|
SFP+ ports | 1 |
Peripherals
|
|
Number of SIM slots | 1 Smart card (Mini SIM) |
Memory card type | microSD |
Memory Cards | 1 |
Serial port | RS232 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | microUSB type AB |
Max USB current (A) | 1 |
Other
|
|
CPU temperature monitor | Yes |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
|
|
Certification | CE, EAC, ROHS |
IP | IP20 |
