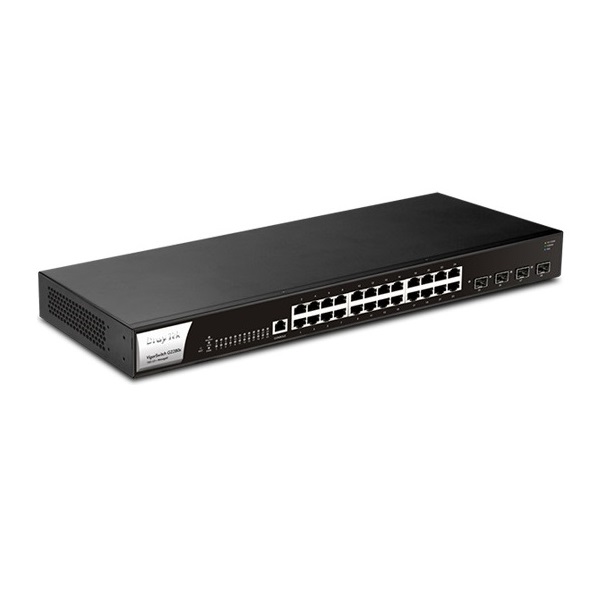

Managed Gigabit Switch DrayTek Vigor G2280x
  • Managed Gigabit Switch DrayTek Vigor G2280x

  • Mã SP : G2280x
  • - Hỗ trợ 24 port LAN Gigabit RJ-45. - Hỗ trợ 4 port Gigabit/ 10Gigabit SFP+ slot. - Hỗ trợ 1 port console RJ-45. - Hỗ trợ 1 Factory Reset Button. - Hỗ trợ chia VLAN. - Bảo hành 24 tháng chính hãng. - Giá chưa bao gồm VAT.
  • Lượt xem : 2425
  • Giá cũ : 9.556.250 VNĐ
  • Giá bán : 7.645.000 VNĐ
  • Số lượng :
    Đặt hàng ngay
  • Thông tin sản phẩm

Managed Gigabit Switch DrayTek Vigor G2280x

- Hỗ trợ 24 port LAN Gigabit RJ-45.

- Hỗ trợ 4 port Gigabit/ 10Gigabit SFP+ slot.

- Hỗ trợ 1 port console RJ-45.

- Hỗ trợ 1 Factory Reset Button.

- Hỗ trợ chia VLAN với chuẩn 802.1q, Port based VLAN, MAC based VLAN, Protocol-based VLAN, VoIP VLAN, Surveillance VLAN, VLAN Management Q-in-Q basic, Port Isolation.

- Tính năng LACP giúp gộp băng thông đường truyền (8 group, mỗi group tối đa 8 port).

- Tính năng Spanning Tree, Loop detection giúp tăng cường độ ổn định hệ thống.

- IGMP snooping, QoS tối ưu cho dịch vụ âm thanh và video.

- DHCP snooping chống giả mạo DHCP server.

Đặc tính kỹ thuật

Model Vigorswitch G2280x
Interface
LAN Port 24x 10/100/1000Mbps Ethernet, RJ-45
4x 1000Mbps/10Gbps SFP+
Console Port 1x RJ-45
Button 1x Factory Reset Button
Capacity
Buffer Size 12 Mbit
Switching Capacity 128 Gbps
Forwarding Rate 95.2 Mpps (64 bytes)
MAC Address Table 16k
Jumbo Frame Up to 12 KB
L3 Routing Table Max. 1k
Networking Standards
IP Version IPv4, IPv6
Ethernet Standards 802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
IEEE802.3ae 10GBase-X
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1w RSTP
802.1s MSTP
802.3ad LACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
VLAN
Max.Number of VLAN 256
VLAN Type 802.1q Tag-based
MAC-based
Protocol-Based
Management VLAN
Voice VLAN
Surveillance VLAN
802.1x Guest VLAN Yes
Port Isolation Yes
GVRP Yes
Q-in-Q Yes
ONVIF Surveillance
Discovery Yes
Surveillance Topology Yes
Real-Time Video Streaming Yes
ONVIF Device Maintenance Device Info, Reset Factory Default, Time Settings, Reboot
QoS
Number of QoS Queues 8
Queue Scheduling SPQ, WRR
CoS (Class of Service) 802.1p CoS, DSCP, CoS-DSCP, IP Precedence
Rate Limit & Shaping Yes
Security
Access Control List MAC, IPv4, IPv6
Storm Control Broadcast, Unknown Multicast, Unknown Unicast
DoS Defense Yes
802.1x Port Access Control Yes
IP Source Guard Yes
IP Conflict Prevention Yes
Loop Protection Yes
Dynamic ARP Inspection Yes
DHCP Snooping with Option 82 Yes
Link Aggregation
Max. Number of Group 8
Max. Number of Member in Each Group 8
Type Static, LACP
Traffic Load Balancing MAC Address, IP/MAC Address
Multicast
IGMP Snooping v2, v3 (BISS)
IGMP Querier Yes
MLD Snooping v1, v2 (Basic)
Max. Number of Multicast Group 256
Group Throttling Yes
Group Filtering Yes
MVR (Multicast VLAN Registration) Yes
Layer 3 Features
Static Route Yes
VLAN Route Yes
AAA
Authentication Server RADIUS, TACACS+
Port Authorization Yes
Management Account Yes
RADIUS Attribute Assignment User Privilege, VLAN
Accounting Yes
Multiple Server Yes
Management
Web Interface HTTP, HTTPS
Command Line Interface Telnet, SSH
OpenVPN Client Certificate-based authentication
User Authentication Local Database, RADIUS, TACACS+
sFlow Yes
SNMP v1, v2c, v3
Private MIB Yes
RMON Group 1, 2, 3, 9
LLDP LLDP-MED, Media Endpoint Discovery Extension
Mail Alert Port Status, Port Speed, System Restart, IP Conflict
Syslog Yes
2-Level Admin Privilege Yes
Multiple Admin Accounts Yes
Managed by VigorRouter SWM Yes
Managed by VigorACS 2 Yes
Config File Export/Import Yes
Dual Image Yes
SNTP (Simple Network Time Protocol) Yes
Diagnostics Tools Port Mirroring, Ping, Cable Test, Fan Test
Physical
19-inch Rack Mountable Mouting Kit Included
Max. Power Consumption 25 watts
Dimension (mm) 441(W) x 197(D) x 45(H)
Weight 2.44 kg (5.0 lb)
Operating Temperature 0 to 45°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 5 to 90% non-condensing
