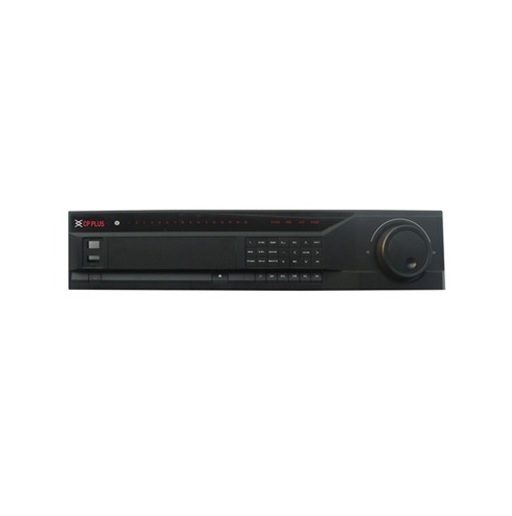

Đầu ghi hình IP 64 kênh 4K CP PLUS CP-UNR-4K564R8-V2
- Mã SP : CP-UNR-4K564R8-V2
- - Up to 64 channel IP camera input - Up to 12MP resolution preview and playback - Max 320Mbps incoming bandwidth - Instastream/H.265/Smart H.264+/H.264/MJPEG - Support 8 SATA HDDs up to 16TB Each, 4 USB Ports (2 USB3.0), 1 eSATA port - 2 HDMI / 2 VGA simultaneous video output - Support Multi-brand network cameras - Support RAID 0/1/5/10 - ONVIF Version 2.4 conformance
- Lượt xem : 61
- Giá cũ : 39.800.000 VNĐ
- Giá bán : 39.800.000 VNĐ
- Số lượng : Đặt hàng ngay
- Thông tin sản phẩm
Đầu ghi hình IP 64 kênh CP PLUS CP-UNR-4K564R8-V2 chuẩn 4K
- Up to 64 channel IP camera input
- Up to 12MP resolution preview and playback
- Max 320Mbps incoming bandwidth
- Instastream/H.265/Smart H.264+/H.264/MJPEG
- Analytics By Camera: ANPR, People Counting, Tripwire, Intrusion, Heatmap, Missing Abandon Detection, Face Detection, Face Recognition
- Support 8 SATA HDDs up to 16TB Each, 4 USB Ports (2 USB3.0), 1 eSATA port
- 2 HDMI / 2 VGA simultaneous video output
- Support Multi-brand network cameras
- Support RAID 0/1/5/10
- ONVIF Version 2.4 conformance
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
Specification
| Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Two-way Talk | 1 Channel Input, 2 Channel Output, RCA |
| User Interface | GUI |
| Video Output | 2 HDMI, 2 VGA |
| Video Resolution | HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024,1280 × 720, 1024 × 768 VGA1: 1920 × 1080 1280 ×1024,1280 × 720, 1024 × 768, HDMI2/VGA2: 1920 × 1080 |
| Channel | 64 channel |
| Motion Detection | MD Zones: 396(22×18). |
| Bandwidth Incoming | 320 |
| Video Loss | supports |
| Alarm Input | 16 Channel |
| Alarm Output | 6 Channel |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 8 SATA III ports, up to 16TB each, 1 eSATA port |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
| Analytics By Camera | ANPR, People Counting, Tripwire, Intrusion, Heatmap, Missing Abandon Detection, Face Detection, Face Recognition |
| Recording Mode | Manual, Schedule (Regular, MD (Motion Detection) , Alarm, IVS), Stop |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) |
| Backup Mode | USB Device/Network/eSATA Device |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 2 RJ-45 port (10/100/1000Mbps) |
| Interface Ports | 4 USB ports (2 Rear USB3.0, 2 Front USB2.0), 1 RS485, 1 RS232 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, ONVIF 2.4, SDK, CGI |
| Power Supply | Single, AC 100~240V, 50/60 Hz |
| Power Consumption | <16.7W (without HDD) |
| Working Temp | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension | 440mm×450.1mm×95mm |
| Weight | 6.55KG (without HDD) |
