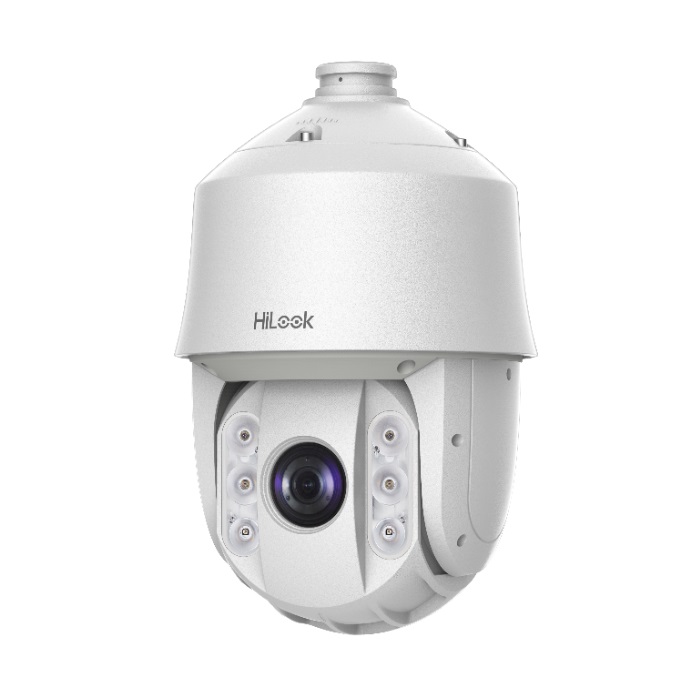

Camera Speed Dome HD-TVI HILOOK PTZ-T5225I-A
- Mã SP : PTZ-T5225I-A
- - Độ phân giải 1920×1080 (1080P) - Zoom quang 25X (4.2mm~120mm) - Zoom số 16X. - Hồng ngoại tầm xa 100m. - Chống ngược sáng True WDR 120dB - Bảo hành 24 tháng chính hãng - Giá chưa bao gồm thuế VAT
- Lượt xem : 2127
- Giá cũ : 14.430.000 VNĐ
- Giá bán : 7.215.000 VNĐ
- Số lượng : Đặt hàng ngay
- Thông tin sản phẩm
Camera Speed Dome HD-TVI HILOOK PTZ-T5225I-A
- Cảm biến CMOS 1/2.8″
- Độ phân giải 1920×1080 (1080P),
- Độ nhạy sáng: 0.005lux@(F1.6,AGC ON), đen trắng: 0.001lux@(F1.6, AGC ON).
- Zoom quang 25X (4.2mm~120mm), Zoom số 16X.
- Hồng ngoại tầm xa 100m.
- Chống ngược sáng True WDR 120dB, giảm nhiễu số 3D DNR
- Hỗ trợ 256 preset, 10 patrol (bao gồm tối đa 32 preset), 5 partern.
- Hỗ trợ cổng RS 485.
- Tiêu chuẩn chống bụi, nước IP66.
- Nguồn 12VDC – không kèm chân đế
Thông số kỹ thuật
Model | PTZ-T5225I-A |
Camera | |
Image Sensor | 1/2.8 inch progressive scan CMOS |
Max. Image Resolution | 1920 × 1080 |
Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
Digital Zoom | 16× |
White Balance | Auto/Manual/ATW/Indoor/Outdoor |
AGC | Auto/Manual |
DNR | 3D DNR |
WDR | DWDR |
Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
Day & Night | IR cut filter |
Privacy Mask | 8 programmable privacy masks |
Lens | |
Focus Mode | Auto/Semiauto/Manual |
Focal Length | 4.8 mm to 120 mm, 25 × Optical |
Aperture Range | F 1.6 to F 3.5 |
Horizontal Field of View | 57.6°to 2.5° (wide to tele) |
Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
Zoom Speed | Approx. 3.2 s (optical, wide to tele) |
Pan and Tilt | |
Pan Range | 360° endless |
Pan Speed | Pan manual speed: 0.1°to 120°/s Pan preset speed: 120°/s |
Tilt Range | -15° to 90°(auto flip) |
Tilt Speed | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Patrol | 10 patrols, up to 32 presets per patrol |
Pattern | 5 patterns, with the total recording time no less than 10 minutes |
Power-off Memory | Support |
Park Action | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ None |
PTZ Position Display | ON/OFF |
Preset Freezing | Support |
Scheduled Task | Preset/ Patrol/ Pattern/ Pan Scan/ Tilt Scan/ Panorama Scan/ Day Mode/ Night Mode/ Zero Calibration/ None |
Infrared | |
IR Distance | Up to 150 m |
IR Intensity | Automatically adjusted depending on the zoom ratio |
Input/Output | |
Video Output | 1 turbo 1080p output/ 1 CVBS output, (NTSC or PAL composite, BNC) |
RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
General | |
Menu Language | English |
Power | 24 VAC Max.30 W (IR: 10 W) |
Working Temperature | -30° C to 65° C (-22° F to 149° F) |
Working Humidity | 90% or less |
Protection Level | IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection |
Mounting | Various mounting modes optional |
Dimension | Ø 213.4 mm × 345 mm |
Weight (approx.) | 3.3 Kg (7.28 Ib.) |
